Current understanding of the aeronomy of Mars

Abstract

This paper provides a short overview of our current understanding of the upper atmosphere/ionosphere of Mars including the escaping neutral atmosphere to space that plays a key role in the current state of the Mars upper atmosphere. The proper definition of the word “aeronomy” relates to the upper atmosphere where ionization is important. Currently there is a paucity of measurements of the internal physical structure of the Martian upper atmosphere/ionosphere. Much that we know has been deduced from theoretical models that predict many more things than thus far measured. The newest Mars orbital missions, the US MAVEN and Indian MOM missions, just beginning their science analyses, will provide the measurements needed to fully characterize the aeronomy of Mars.

Introduction

The term aeronomy has been used since the 1950’s, but its origin has been largely forgotten. Sydney Chapman first suggested, in a letter to Nature [1], that the word aeronomy should replace meteorology, given that the association of meteors is misleading. This suggestion was not followed so a number of years later [2] he modified his original idea and suggested that aeronomy instead of “being used to signify the study of the atmosphere in general, should be adopted with the restricted sense of the science of the upper atmosphere”. This use of the term was accepted and has been in use ever since. In 1960 Chapman restated this definition [3] in a slightly different form by suggesting that aeronomy is the science of the upper region of the atmosphere where dissociation and ionization are important.

Our current understanding of the aeronomy of Mars is very limited. The two Viking landers each carried a mass spectrometer [4] and a retarding potential analyzer [5]. Thus we have insitu neutral gas composition and plasma density, composition and temperature information from only the equivalent to a single sounding rocket flight. The other in-situ plasma composition data, comes from the ASPERA instrument [6] on Mars Express (MEX), which has been providing information on the density, composition and energy of ions and electrons of energies between about 10 eV to ~36 keV at altitudes beyond about 300 km. Much electron density data exists from the MARSIS instrument on MEX [7] from in situ and remote wave sounding - spottily from radio occultation observations obtained on early missions (e. g. Mariners, Viking, Russian “Mars” missions) and more comprehensively from the radio science limb occultation experiments on the more recent Mars Express [8] and Mars Global Surveyor [9] missions. The same Mars missions also provided some remote and inferred atmosphere information from UV occultation, from low altitude aerobreaking-phase satellite drag data (MRO, MGS, Odyssey) and more extensively from Mars Global Surveyor (MGS), reflectometer measurements of atmosphere-scattered electron pitch angle distributions (e.g.,[10]). Finally the analogy between Mars and Venus, with similar atmosphere composition and regions with no intrinsic surface magnetic fields, has also provided important insights about the aeronomy of this poorly studied region of Mars. This is a lot of information, particularly of the electron density distributions. However, we have only glimpses of the overall complexity of the atmosphere and plasma states - there is, as of now, almost a complete absence of the thermal, composition and dynamical parameters that define the underlying physics of the Martian aeronomy.

Review

Neutral upper atmosphere

The Viking 1 and 2 mass spectrometers on entry obtained mass spectra from 1 to 49 amu [4]. They sampled the atmosphere under not very different solar illumination locations and solar activity. The composition data from Viking 1 is shown in Figure 1. Atomic oxygen, a very important neutral gas species for understanding the aeronomy, was not measured by these instruments. The density of O, which has been widely used, was deduced from the presumed chemistry of the measured ion composition. Figure 2 shows results from a theoretical model, indicating that many other minor species are expected to be present. The temperatures derived from the Viking data [11] are shown in Figure 3, which implies the presence of significant wave activity.

Figure 1

Viking neutral measurements. Observations of neutral composition from one of the two Viking lander entry probes, both of which took place on the dayside of Mars within one month of one another and at nearly the same solar zenith angles.

Figure 2

Dayside atmospheric model. Atmospheric composition based on the Viking entry-probe neutral measurements, theoretical modeling of the chemistry using the Viking ion measurements, and near-earth remote observations of the light species (from [12]).

Figure 3

Atmosphere temperature measurements. The Viking measured altitude temperature profiles were generated by combining the scale heights deduced from the mass spectrometer density measurements at high altitudes with low altitude accelerometer measurements (from [11]).

Given this very limited direct observation of the atmospheric altitude variation, plus globally patchy statistical measurements of the density from accelerometer measurements, comprehensive 3D thermospheric circulation models (e.g.,[13,14]), constrained by the measurements, have been developed during the last decade. Such models solve the coupled continuity, momentum and energy equations and provide the densities, temperature and velocities of the major species. These models have been very helpful to achieve a global understanding of the behavior of the upper atmosphere. Figure 4 shows results from such a model which are consistent with measured parameters, but the model predicts spatial changes in the distributions and provide clues for parameters, such as neutral velocities for which no direct data is available.

Figure 4

Neutral atmosphere model. Shown are calculated gas temperatures and velocities at 190 km for equinox solar cycle minimum conditions. (1) Minimum temperatures are in blue and correspond to 115–130K (nightside); (2) Moderate temperatures in green correspond to 170–180K (mostly dayside, low SZA); (3) Maximum temperatures in red correspond to 250–290K (high latitude and evening terminator). Temperature increments are 10K throughout. Maximum area for horizontal wind is ~350 m/s [15].

Ionosphere

As indicated in the introduction, each of the two Viking landers carried a retarding potential analyzer, which provided information on the major ion densities and plasma temperatures in the ionosphere up to an altitude of about 300 km as shown in Figures 5 and 6. Note that two spacecraft vertical profiles are very similar and equivalent to data from a single sounding rocket flight and that is all the data available to date. In order to attempt to understand the implication of this extremely minimal data set, we need to use extensive model calculations and invoke the similarities between the ionospheres of Mars and Venus. Carbon dioxide is the major neutral constituent of both planets, with atomic oxygen becoming dominant above about 200 and 150 km, respectively. The Viking RPA’s measurements detected ion flows of ~100 m/s at high altitudes and the fact that Mars has remnant crustal magnetic fields introduces complexity in the transport processes above the chemical equilibrium region (≤200 km), but the basic parent sources of the two ionosphere regions are very similar. The controlling chemical processes are:

Figure 5

Viking ion measurements. The only Mars ion composition measurements were from the two Viking entries in the dayside under quite similar solar conditions. One question is whether O⁺ ever becomes dominant at high altitudes. Electron temperatures and ion velocities were also sampled – with the observation that there are large horizontal motions at high altitudes. (from [16]).

Figure 6

Viking plasma temperatures. Temperature profiles measured by the two Vikings [5,16] were nearly identical. On the Viking 1 entry (right), the ion temperature increased from the low altitude neutral temperature T_n (deduced from the neutral scale height) to the measured thermal electron temperature T_e1at high altitudes. The electron temperatures T_e2 and T_e3 are inferred estimates of the presence of photoelectrons and a hotter population from the magnetosheath. Tr and Tc are theoretical models of the electron temperature from [4] and [17].

• Dominant photoionization parent is CO ₂:

  $$ {\mathrm{CO}}_2 + \mathrm{h}\nu\ \to\ {{\mathrm{CO}}_2}^{+} + {\mathrm{e}}^{-} $$

• (minor photo-ions are also produced: O⁺, N₂ ⁺, CO⁺, O₂ ⁺, NO⁺, H₂ ⁺)

• Ion-neutral chemical interactions transforms species: O ₂ ⁺ produced by:

  $$ \begin{array}{l}\\ {}\begin{array}{l}{{\mathrm{CO}}_2}^{+}+\mathrm{O}\ \to\ {{\mathrm{O}}_2}^{+} + \mathrm{C}\mathrm{O}\hfill \\ {}\kern6em \mathrm{and}\hfill \\ {}{\mathrm{O}}^{+} + {\mathrm{CO}}_2 - - > {{\mathrm{O}}_2}^{+} + \mathrm{C}\mathrm{O}\hfill \end{array}\end{array} $$

(the charge exchange reactions indicated above are very fast so O₂ ⁺ dominates the ionosphere composition)

• Ion loss is via dissociative recombination:

  $$ {{\mathrm{O}}_2}^{+} + {\mathrm{e}}^{-}\to\ \mathrm{O} + \mathrm{O} $$

This ion chemistry leads to the, initially unexpected result, that in an atmosphere that basically has no molecular oxygen, the major ion is O₂ ⁺. Figure 7 shows the results from a 1D chemical-diffusion model ([18]) that reproduces the Viking observations (assuming a certain topside ion outflow) and also shows that many important minor ion species are also expected to be present.

Figure 7

Modeled 1-D ion composition. [18] modeled 14 ions: CO₂ ⁺, Ar⁺, N₂ ⁺, O⁺(4S), O⁺(2D), O⁺(2P), CO⁺, C⁺, N⁺, O₂ ⁺, NO⁺, O⁺⁺, H⁺, He. As seen the model matches the total ion/electron measurements of Viking 1 with an assumed upward ion flow (right frame), but many species are predicted in the models that have yet to be measured.

Such a 1D model is very important, because it can include the many important chemical processes; however it requires a number of important assumptions (e.g. upper boundary ion flow and plasma temperature). We also have 3D MHD models, which self-consistently solve the plasma continuity, momentum and energy equations from below the main ionosphere well out into the solar wind. However there is always a price to pay; such a model given limited computational resources can only consider the main ions (O₂ ⁺, O⁺, CO₂ ⁺). The results from such a model [19] are shown in Figure 8.

Figure 8

MHD 3-D ion model. Viking 1 ion density measurements are compared to model calculations of [19]. The lack of good agreement in O⁺ is the result of the uncertainty in neutral O densities; excellent agreement could be achieved by adjusting the neutral O density values, which were originally obtained by fitting a different model.

It was established decades ago, using the large Pioneer Venus data base, that the observed ionosphere temperatures at Venus, required either i) a reasonable, but ad hoc energy inflow at the top of the ionosphere and/or ii) a reduced electron thermal conductivity. The plasma temperatures measured by the RPA’s on Viking shown in Figure 6 also increase enough with increasing altitude to require the ad hoc energy input assumptions, as needed in the case of Venus. Figure 8 shows the results of a model ion composition calculation that used a reasonable topside heat inflow to match the observed ion temperatures from Viking and that agrees with the Viking composition measurements. Currently it is clear that conventional EUV heating and classical thermal conductivity lead to temperature values below the observed ones both at Mars and Venus and there is insufficient information to establish if either or both of the processes suggested to remedy this problem are in effect active. It is quite likely that both play a role, but whether one or the other dominate, or some other process is active, cannot be established at this time. Note that two review papers have been published recently that deal with details of the ionosphere of Mars [20,21].

Exosphere and Atmospheric Escape

At both Mars and Venus a hot oxygen corona has been observed to be present ([22,23]). These fast energetic oxygen atoms are mostly created by dissociative recombination of molecular oxygen ions (some other processes, such as dissociative recombination of CO⁺ also make a contribution).

$$ \begin{array}{l}{O}_2^{+}+e\to O\left({}^3P\right)+6.99 eV\hfill \\ {}\kern5em \to O\left({}^3P\right)+O\left({}^1D\right)+5.02 eV\hfill \\ {}\kern2.32em \to O\left({}^3P\right)+O\left({}^1S\right)+2.80 eV\hfill \\ {}\kern2.2em \to O\left({}^1D\right)+O\left({}^1S\right)+0.84 eV\hfill \\ {}\kern2.08em \to O\left({}^1D\right)+O\left({}^1S\right)+0.84 eV\hfill \end{array} $$

Sophisticated 3D Monte Carlo models have been developed to quantify the distribution of these atoms around Mars [15]. An example of such predicted spatial distribution is shown in Figure 9.

Figure 9

Oxygen corona. Calculated hot oxygen densities in the meridional plane for low and high solar activity from [24] (the color scale denotes log density in cm⁻³).

The maximum energy of a hot oxygen created by the dissociative recombination of O₂ ⁺ is about 3.5 eV; this energy is too low to allow it to escape from Venus, but is well above the necessary escape energy of Mars (~2 eV), thus resulting in a significant escape flux. Estimates of oxygen escape are indicated in Table 1 [25]; note the significant variation with orbital location and solar insolation.

Table 1 Calculated neutral atomic oxygen escape fluxes [21]

The other process by which the atmosphere can be depleted is ion escape. Ion escape has been measured extensively by the ASPERA instrument on Mars Express ([26,27]) and also widely modeled (e.g. [24,28-30]) and there is reasonably good agreement between the measured and calculated values. Figure 10 shows the measured solar cycle variation obtained from Mars Express and Table 2 shows the results of the most recent calculations by Dong et al. [28].

Figure 10

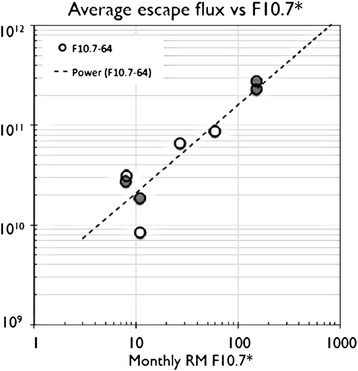

Measured ion escape fluxes. Mars Express measured the solar cycle variation (Figure 3b from [27]) of O escape measured in the tail for 4 time intervals of data from 2007 through 2013. Average O escape fluxes are plotted vs. monthly F10.7 (normalized in plot) measured at Earth. Dark circles correspond to independently derived rates from earlier studies.

Table 2 Modeled ion escape fluxes (s ⁻¹ ) of dominant ion species [10]

Conclusions

As outlined in the introduction the amount of direct information available at this point on the aeronomy of Mars is extremely limited. However, that is changing very rapidly. There are two spacecraft, recently beginning science operations, in orbit around Mars (both were inserted into orbit late September 2014) carrying instruments that will provide a wealth of new information. The Indian Mars Orbiter Mission (MOM) carries three aeronomy related instruments: a methane sensor, a quadrupole neutral mass spectrometer and a Lyman alpha photometer. The US Mars Atmospheric Volatile Escape Mission (MAVEN) has 9 instruments on board all designed to address a wide range of aeronomy related issues. After the completion of the Pioneer Venus Orbiter mission we could confidently state that we knew more about the aeronomy of Venus than any other planet in our solar system except for Earth. We are confident that in the next year or two we will be able to say the same about Mars.
