A snapshot of the climate in the Middle Pleistocene inferred from a stalagmite from central Japan

Abstract

Stalagmites are useful archives in reconstructing paleoclimates: most paleoclimate studies used stalagmites that are distributed in specific locations and ages. We examined a stalagmite (GYM-1) collected from Nara Prefecture, central Japan, where limestone areas are limited. Applying ²³⁸U–²³⁴U method, the ages of GYM-1 were determined as 744 ± 70 to 677 ± 74 ka (based only on analytical uncertainties, 1σ). Even assuming a 10% uncertainty in the initial activity of ²³⁴U/²³⁸U, (²³⁴U/²³⁸U)₀, this age could be still older than 460 ka. Temperatures calculated based on δD in the fluid inclusions and δ¹⁸O in the calcium carbonate ranged from 9.0 to 11.9 °C (10.8 ± 0.9 °C on average) or from 6.0 to 9.1 °C (7.9 ± 0.9 °C on average) depending on the equation. The estimated temperature suggests that GYM-1 formed during an interglacial period of the Middle Pleistocene. Synchronous behavior of isotopic values with lamination likely reflects seasonal temperature in a highly ventilated cave system.

Introduction

Stable oxygen isotopic records of stalagmites are useful for reconstructing terrestrial paleoclimates, particularly from the Late Pleistocene to Holocene (e.g., Wang et al. 2001; Genty et al. 2003; Yuan et al. 2004; Dykoski et al. 2005). The thorium-230 (²³⁰Th) method provides a significant advantage for stalagmites by minimizing the dating uncertainty (~ 1%, Shen et al. 2012; Cheng et al. 2013). However, ²³⁰Th dating is only applicable for specimens formed within the last 650 kyr because the activities of ²³⁴U and ²³⁰Th reach near their equilibrium. The limitation of the dating method results in the restriction of climate records from older stalagmites. Thus, the terrestrial climate in the Early and Middle Pleistocene is rarely supported by stalagmite records.

Stalagmite records in Japan are limited, especially from the mainland (e.g., Shen et al. 2010; Sone et al. 2013; Mori et al. 2018), which are all younger than 100 ka. To approach the geochemical record of the Middle Pleistocene and evaluate isotopic alteration during extended preservation, we applied ²³⁸U–²³⁴U dating to a stalagmite (GYM-1) collected in Nara Prefecture, central Japan. We also analyzed the stable isotopes in calcium carbonate and fluid inclusions in GYM-1 to estimate the paleo-temperature.

Sample location

Goyomatsu cave is located in Tenkawa village, central Nara Prefecture, on the Kii Peninsula, Japan (34.26° N, 135.89° E; Fig. 1a,b). The geology of this region belongs to the Chichibu Composite Belt, an accretionary complex developed from the Carboniferous to the Jurassic. The limestone bearing caves are Permian in age, poor in fossils, and have largely transformed into marble owing to the penetration of Neogene igneous rocks. The modern climate at the Tenkawa Observatory is temperate. Annual precipitation is 2500 mm (average from 1991 to 2020; available at https://www.data.jma.go.jp/gmd/risk/obsdl/index.php), where 50% of the annual precipitation occurs from June to September (Fig. 1c). The monthly air temperature at the cave site ranges from – 1.4 to 22 °C, with an annual average of 9.8 °C, based on the altitudinal effect (0.6 °C/100 m) for the observation at Gojo Observatory, located 21 km northwest of Goyomatsu cave.

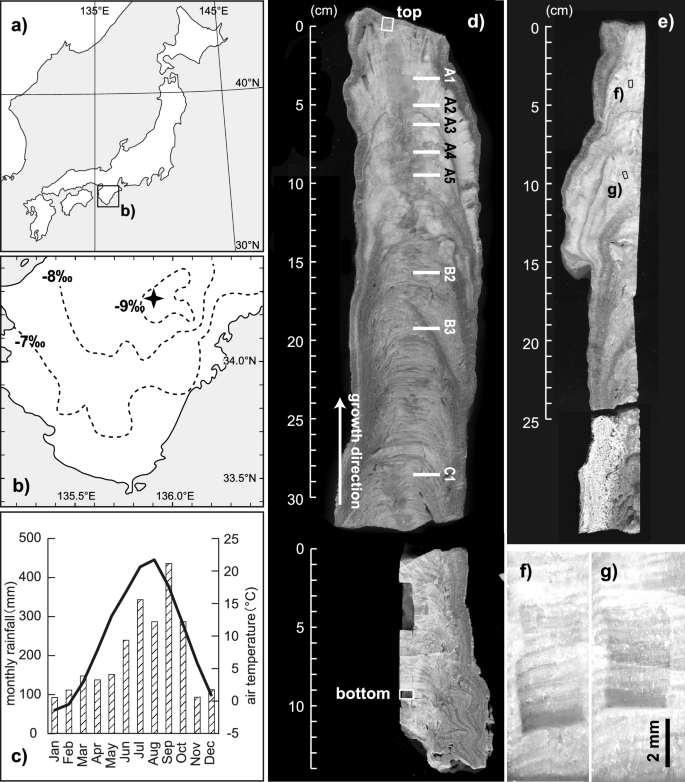

Fig. 1

a Location of Goyomatsu cave on a wide-area map of Japan and (b) in the Kii Peninsula. The dashed counter represents the δ¹⁸O of rainwater after Ishizuka et al. (2006). c The modern monthly air temperature estimated from the record at Gojo Observatory and rainfall amount at Tenkawa Observatory. d The cut surface of the stalagmite, GYM-1, used for low-resolution (1 mm) analysis. The horizontal bars with letters and numbers (A1–A5, B2–B3, and C1) represent the positions for the fluid inclusion analyses (see Table S2). White line squares represent the positions for age determination. e Another cut surface of GYM-1 showing areas (black line squares) for high-resolution (~ 0.1 mm) analysis and f, g enlarged images

Goyomatsu cave has two floors with multiple entrances. We collected a 40-cm-long specimen (GYM-1; Fig. 1d–g) approximately 15 m inside from the cave entrance on the lower floor in July 2018. GYM-1 is characterized by a finely laminated structure with light porous and dark transparent layers under reflected illumination (Fig. 1f,g). Dripwater samples were collected from two stalactites a few meters apart from the GYM-1 site. One liter of a dripwater sample was collected from each stalactite for one month in February 2018 when the cave was closed to tourists.

Methods

Dating

The stalagmite was cut into halves along the growth direction; the cut surface was polished. The ²³⁰Th and ²³⁸U–²³⁴U dating was performed at GEOTOP, Université du Quebec à Montréal. We cut cubic specimens of approximately 1 g each from the top and bottom of the stalagmite (Fig. 1d). Two dripwater samples collected near the stalagmite sites were analyzed to obtain the (²³⁴U/²³⁸U)₀ activity ratio. Dripwater samples were filtered through a 0.22 μm membrane filter and sealed in PFA bottles. Chemical separation and purification were performed using AG1X8 anion exchange resin (Bio-Rad) and U-Teva resin (Elchrom industry^™), following the methods described in Pons-Branchu et al. (2005) and Ghaleb et al. (2019). The isotopic compositions of the purified U and Th fractions were analyzed using a multi-collector inductively coupled plasma mass spectrometer (MC-ICP-MS, Nu II instrument^™) at GEOTOP.

Assuming that the dripwater ²³⁴U/²³⁸U activity was the initial ²³⁴U/²³⁸U activity, (²³⁴U/²³⁸U)₀, when the stalagmite was deposited, the ages were calculated as follows:

$$\left( {^{{{234}}} {\text{U}}/^{{{238}}} {\text{U}}} \right)_{t} {-}{1 } = \, \left\{ {\left( {^{{{234}}} {\text{U}}/^{{{238}}} {\text{U}}} \right)_{0} {-}{1}} \right\}{\text{ exp }}\left( {{-}\lambda_{{{234}}} t} \right),$$

(1)

where (²³⁴U/²³⁸U)_t is the current ²³⁴U/²³⁸U activity of the stalagmite and λ₂₃₄ represents the decay constant of ²³⁴U (2.8221 × 10^–6 yr^–1, Cheng et al. 2009; 2013). Dating errors were calculated based on the law of propagation of error, as well as on the uncertainty of (²³⁴U/²³⁸U)₀.

Stable isotopic analyses

Two different resolutions of the carbonate samples were prepared for oxygen and carbon stable isotopic analyses. For low-resolution analysis, 100 μg of each powdered specimen was collected at 1 mm intervals along the growth axis. The powder specimens were analyzed using a continuous-flow IRMS (MAT Delta Plus, Finnigan) connected to a carbonate pretreatment device, Gas Bench, at the University of Tokyo. Powder carbonate samples were reacted with purified phosphoric acid in a helium-controlled atmosphere at 60 °C and maintained for more than 5 h. For high-resolution analysis, 60 μg of each powder specimen was collected at approximately 0.1 mm intervals for clearly laminated positions (Fig. 1e–g) under a high-vision microscope (TGM200XM, Shodensha Inc.). The powder specimens were analyzed using a dual-inlet IRMS (MAT 253, Finnigan) connected to a pretreatment device (Kiel carbonate device, Finnigan) at Kochi University. Samples were reacted with phosphoric acid under vacuum at 70 °C. The isotopic ratio was expressed in δ notation relative to the Vienna Peedee Belemnite (VPDB). The reproducibility of the isotopic ratio was better than 0.1‰ for δ¹³C and 0.1–0.2‰ for δ¹⁸O (1σ) on the MAT Delta Plus, whereas it was better than 0.1‰ for δ¹³C and 0.05‰ for δ¹⁸O (1σ) on the MAT 253. We also prepared thin sections from the cut specimen at the same positions for the high-resolution analyses.

Ten sections 16 × 16 mm² in area and 2 mm in depth were cut from GYM-1 (Fig. 1d) for the isotopic analysis of fluid inclusions. Isotopic values were analyzed using cavity ring-down spectroscopy (CRDS, L2140-i, Picarro Inc.), coupled with an extraction device at Nagoya University, following a continuous standard water background method (de Graaf et al. 2020). Eight sections containing more than 0.2 μL of water were adopted for isotope measurements. The isotopic values of the water samples were expressed relative to the international reference, VSMOW. The reproducibility was better than ± 0.2 and ± 0.6‰ for δ¹⁸O and δD, respectively, (1σ). The δ¹³C and δ¹⁸O in carbonate fraction of the same eight sections were also analyzed by a continuous-flow IRMS (Delta V Advantage, Thermo Fisher Scientific, Inc.) connected to a carbonate pretreatment system (Gas Bench II, Thermo Fisher Scientific, Inc.) at Nagoya University. The isotopic measurements were performed in triplicate, providing standard deviations for the mean (1σ/√n) better than 0.1‰ for both carbon and oxygen. Among the several equations for oxygen isotope fractionation, we adopted two equations: (Coplen 2007; Tremaine et al. 2011).

$${1}000 \times {\text{ln }}\alpha_{{{\text{CaCO3}} - {\text{H2O}}}} = { 17}.{4 } \times { 1}000/\left( {t{-}{273}.{15}} \right){-}{28}.{6}$$

(2)

and

$${1}000 \times {\text{ln }}\alpha_{{{\text{CaCO3}} - {\text{H2O}}}} = { 16}.{1} \times {1}000/\left( {t{-}{273}.{15}} \right){-}{24}.{6 }$$

(3)

where α_CaCO3-H2O represents the oxygen isotopic fractionation factor between water and calcium carbonate.

Results and discussions

Timing of stalagmite formation

The two samples collected at the bottom and top of GYM-1 examined for ²³⁰Th dating showed ²³⁰Th/²³⁴U activity ratios exceeding 1 (1.07–1.10, Table S1 and Fig. 2a), likely due to selective uranium loss during diagenetic alteration, such as recrystallization (Lachniet et al. 2012; Bajo et al. 2012). Uranium loss causes serious dating errors for the ²³⁰Th and/or U–Pb method depending on the timing of uranium escape; however, it does not affect the ²³⁸U–²³⁴U method because U dissolution and leaching would not involve ²³⁴U/²³⁸U fractionation. We estimated the initial ²³⁴U/²³⁸U ratio of GYM-1, (²³⁴U/²³⁸U)₀, by measuring the two dripwater samples (²³⁴U/²³⁸U of ~ 1.2, Table S1). Applying the mean ratio of the two dripwater samples as (²³⁴U/²³⁸U)₀, the ages of GYM-1 were calculated as 744 ± 70 ka (1σ) for the bottom and 677 ± 74 ka for the top (Fig. 2b). As a result, the two dates overlapped within mutual errors, making it impossible to obtain further age constraints.

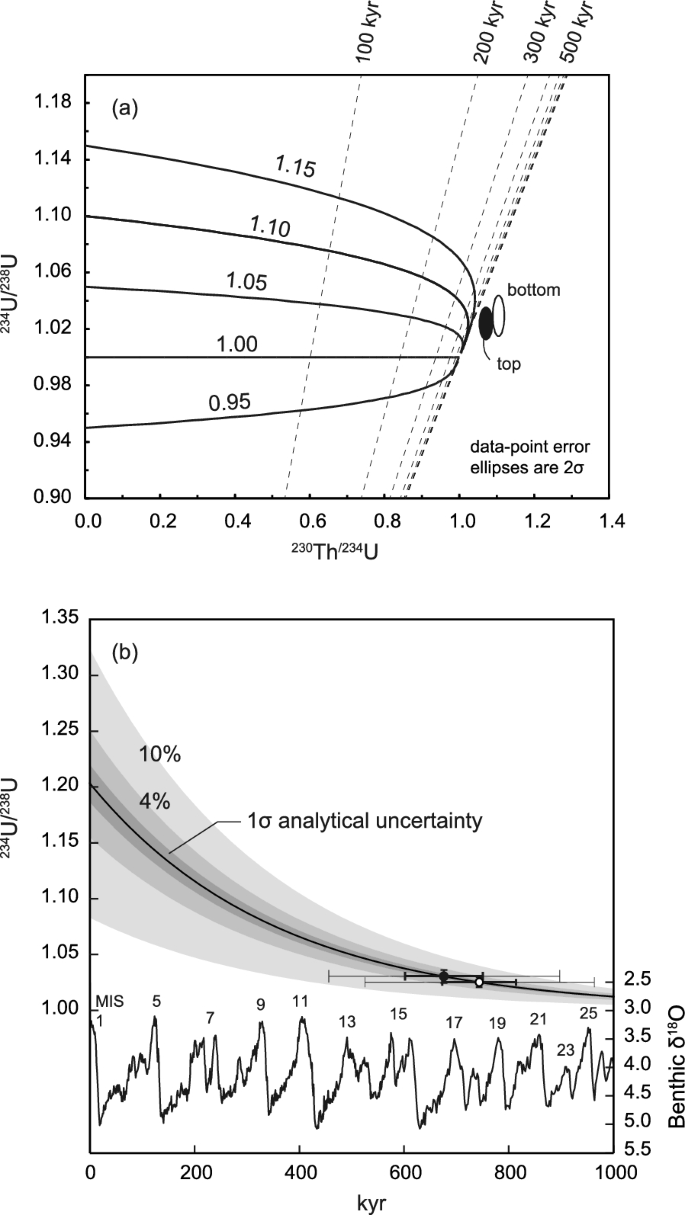

Fig. 2

a ²³⁰Th/²³⁸U and ²³⁴U/²³⁸U in the classic isotope evolution diagram. b Evolution of the ²³⁴U/²³⁸U activity with a ²³⁴U/²³⁸U₀ value of 1.203 ± 0.034 (1σ). Shaded zone represents uncertainties: the dark shade represents 1σ standard deviation calculated from the analytical uncertainties (Table S1); bright shade and the intermediate represent ranges calculated for 10% and 4% deviations in (²³⁴U/²³⁸U)₀, respectively. Thick error bars represent the 1σ standard deviation, while thin error bars were estimated from 10% deviations in (²³⁴U/²³⁸U)₀. The last 1000 ka δ¹⁸O record of benthic foraminifera (LR04 stack; Lisiecki and Raymo 2005) is also shown. Numbers indicate MIS stages (Railsback et al. 2015)

We also considered the uncertainty of (²³⁴U/²³⁸U)₀, which significantly affects the dating error. A previous study on an Italian stalagmite showed the relative standard deviation (RSD) in (²³⁴U/²³⁸U)₀ as 4% (1σ) during 100 kyr (Bajo et al. 2012), while another specimen from the same cave showed a relatively constant (²³⁴U/²³⁸U)₀ ratio of 0.5% (1σ) for the last 16 ka (Bajo et al. 2016). Another study on a travertine deposit (carbonate precipitate from hydrothermal water) showed 10% (1σ) RSD of (²³⁴U/²³⁸U)₀ used for the age construction for the last 300 ka (Ghaleb et al. 2019). Similar range of RSD in (²³⁴U/²³⁸U)₀ was also estimated from the stalagmites formed in mainland Japan (1–5%, Shen et al. 2010; Sone et al. 2013; Mori et al. 2018). Applying the largest uncertainty of (²³⁴U/²³⁸U)₀ reported in previous studies (10%) to GYM-1, the dating errors were ± 220 and ± 219 ka (1σ) for the top and bottom, respectively. Even in this case, the age of GYM-1 ranged from 456 to 963 ka. This age range does not contradict the ²³⁰Th/²³⁴U activity ratio, which was similar to the secular equilibrium (~ 1, Table S1).

Formation temperature

The low-resolution δ¹⁸O values of CaCO₃ (δ¹⁸O_cc) in GYM-1 ranged from – 8.2 to – 6.4‰ with an average of – 7.3‰ (Fig. 3). The δ¹³C of CaCO₃ (δ¹³C_cc) ranged from – 9.7 to – 5.6‰ with an average of – 7.9‰. Eight pairs of δ¹⁸O values from CaCO₃ and fluid inclusions (δ¹⁸O_cc and δ¹⁸O_fi, respectively) were applied to the equations from Coplen (2007) and Tremaine et al. (2011). The resulting temperatures (T) ranged from 6.5 to 11.3 °C (9.3 ± 1.7 °C on average) and 3.4 to 8.5 °C (6.4 ± 1.8 °C on average), respectively.

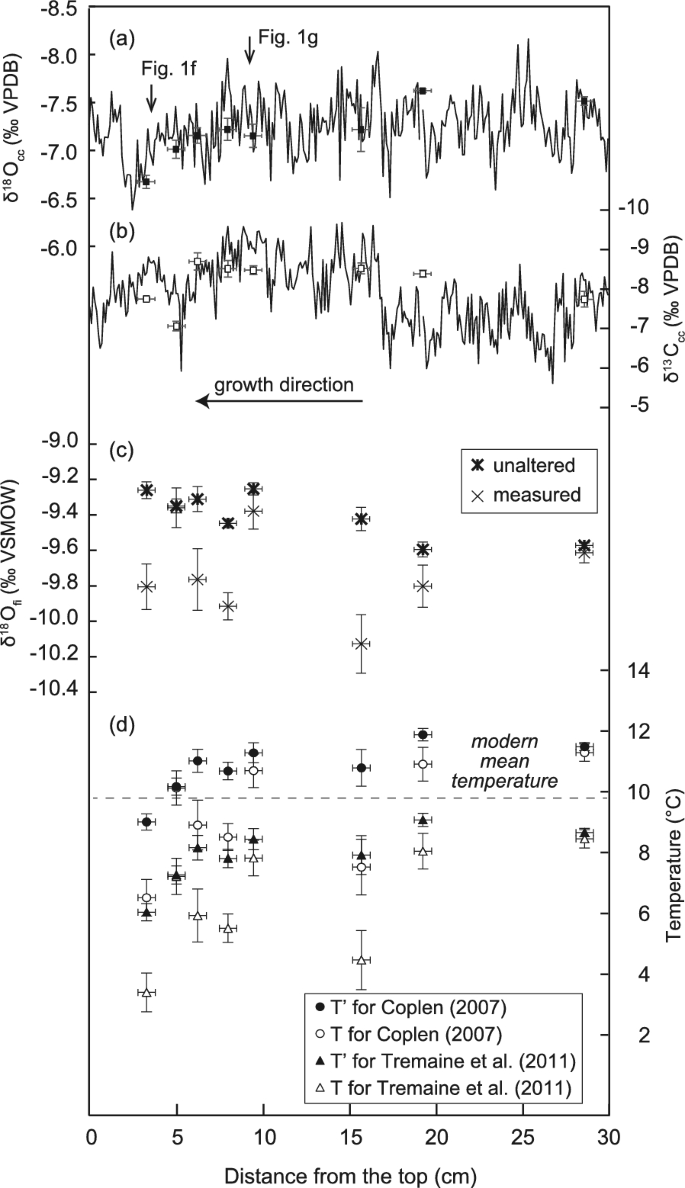

Fig. 3

Low-resolution records of the (a) δ¹⁸O_cc and (b) δ¹³C_cc values in GYM-1. Squares represent the isotopic values in eight sections. Vertical error bar represents the standard deviation of the mean (2σ/√n), while horizontal error bar represents ± 5 mm. c Measured and unaltered δ¹⁸O_fi were used to obtain (d) temperatures, T (open symbol) and T’ (closed symbol), respectively. Circle and triangle symbols represent temperatures calculated for Coplen (2007) and Tremaine et al. (2011), respectively. Vertical error bar represents 1σ, while horizontal error bar represents ± 5 mm

The analyzed δD_fi and δ¹⁸O_fi values yielded a high d-excess (14.3 to 19.9‰; the intercept of the meteoric water line, MWL, Table S2) compared to the modern value (~ 14.2‰, Ishizuka et al. 2006, Fig. S1). This high d-excess may result from a shift in the local MWL (LMWL) or post-depositional alteration of δ¹⁸O_fi (Demény et al. 2016; Uemura et al. 2020). The latter can occur during the isotopic exchange between water and CaCO_3, where the amount of oxygen in fluid inclusions is overwhelmed by a large amount of oxygen in the surrounding CaCO₃. Such isotopic exchange does not affect the δD_fi values due to the absence of hydrogen in the surrounding matrix. Here, the unaltered δ¹⁸O_fi values were estimated from the δD_fi values using the relationship in the modern LMWL (δD = 8.1 × δ¹⁸O + 14.2, Ishizuka et al. 2006). Comparing measured δ¹⁸O_fi and unaltered δ¹⁸O_fi, cut specimens, A2 and C1, showed similar values, while 4 sections, A1, A3, A4, and B2, showed different values (Fig. 3c). This may indicate the heterogeneous alteration of fluid inclusions in GYM-1. The optical image of the stalagmite showed a structural shift at 14 cm from the top: white layer in upper half and relatively compact and translucent layer in bottom half (Fig. 1d), which is not correlate with the difference between measured δ¹⁸O_fi and unaltered δ¹⁸O_fi. In addition, the LMWL include some uncertainties as seen in modern meteoric waters that show dispersive isotopic values (Fig. S1). Therefore, the precise degree of δ¹⁸O_fi alteration and its relationship with the local structure was difficult to be solved. Using unaltered δ¹⁸O_fi, the recalculated temperature (T’) falls within a narrow range from 9.0 to 11.9 °C (10.8 ± 0.9 °C on average) for Coplen et al. (2007), and from 6.0 to 9.1 °C (7.9 ± 0.9 °C on average) for Tremaine et al. (2011) (Fig. 3). According to the results, we considered that T’ based on δD_fi and modern LMWL better represents the past temperature. In either case, the post-depositional alteration of δ¹⁸O_fi in GYM-1, if present, was not significant because the difference between T and T’ was smaller than the difference produced by the equations.

The estimated temperate temperature, similar to the modern climate, suggests GYM-1 likely formed during an interglacial period. Considering the dating error and a 10% uncertainty in (²³⁴U/²³⁸U)₀, potential growth period includes MISs 13, 15, 17, 19, 21, 23, and 25 (Fig. 2).

High-resolution isotopic record and the effect of ventilation

The high-resolution δ¹⁸O_cc analyzed for two selected positions (~ 3.5 and 9.3 mm from the top; Fig. 1e) in GYM-1 varied from – 7.8 to − 6.6‰ (– 7.3‰ on average) and from – 8.3 to–7.2‰ (– 7.8‰ on average) with a mean amplitude of 0.4 and 0.6‰, respectively (Fig. 4). A similar pattern was observed in δ¹³C_cc, which showed a greater amplitude of approximately 2.0‰. The δ¹⁸O_cc and δ¹³C_cc values changed together in a cyclic manner and were significantly correlated with each other (R² = 0.39). Isotopic changes were roughly coincident with the texture of GYM-1: relatively high values occurred at thick laminae enriched in needle-like pores, whereas low values were at thin and transparent laminae (Fig. 4). Similar features have been reported for fast-growing stalagmites formed in caves affected by ventilation (Mattey et al. 2010; Boch et al. 2011). The cave morphology and the sample proximity to the cave entrance (15 m) supports well-ventilated system. Ventilated conditions raise the growth rate of a stalagmite by accelerating CO₂ degassing from the dripwater, providing a possibility of extracting seasonal temperatures. According to the linear relationship between T’ and δ¹⁸O_cc (Fig, S2), temperature can be roughly estimated from δ¹⁸O_cc. In this case, the high-resolution δ¹⁸O_cc correspond to temperatures from 9.0 to 14.0 °C or from 6.3 to 11.4 °C, depending on the equation, with a relatively constant amplitude of 2–3 °C. This range is reasonable for the cave air temperature. Although dry air fed by ventilation can raise oxygen isotopic fractionation due to evaporation, this effect is minimized when drip rate is sufficiently high (Rampelbergh et al. 2014; Feng et al. 2014). The synchronous change in δ¹⁸O_cc and δ¹³C_cc in GYM-1 primarily reflects the annual changes in temperature and partial pressure of CO₂ in the cave air, which tend to be high in summer and low in winter.

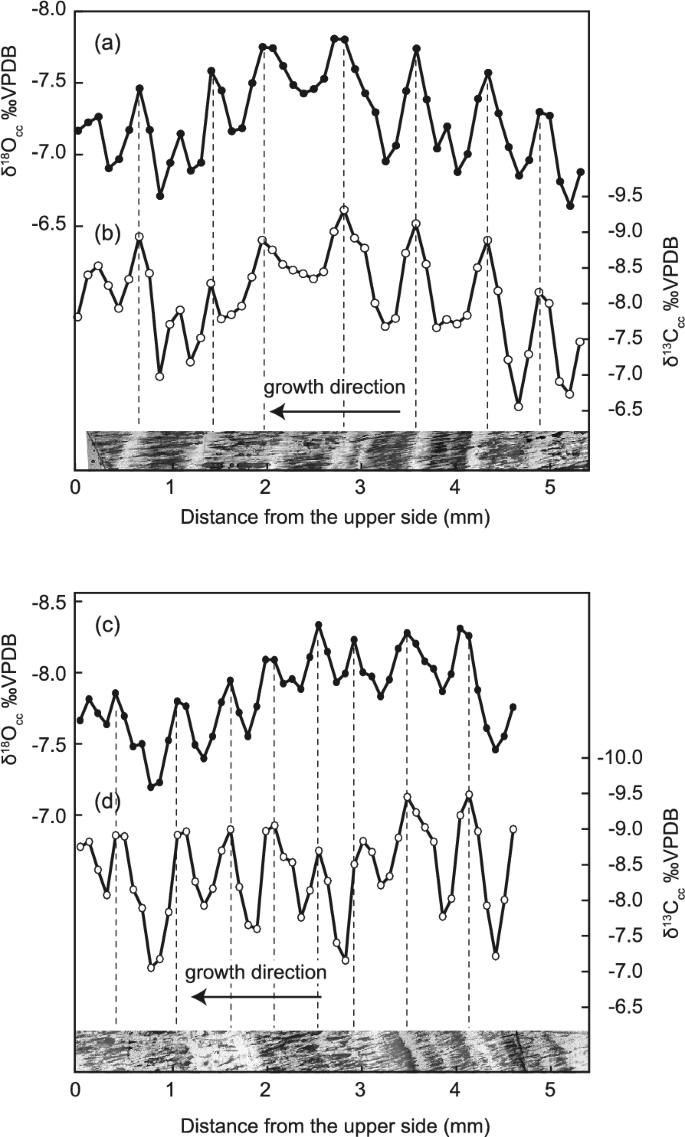

Fig. 4

High-resolution profiles of δ¹⁸O_cc (closed circle) and δ¹³C_cc values (open circle) at two positions revealing lamination. The sampling position of (a) and (b) refers to Fig. 1f, while the position of (c) and (d) refers to Fig. 1 g. Transmitted images of the thin sections are also shown

Conclusions

Stalagmites older than 650 ka are challenging owing to the increasing risks of alteration, in addition to the difficulties in applying ²³⁰Th dating methods. We analyzed a well-laminated stalagmite (GYM-1) collected at Goyomatsu Cave, Nara Prefecture, central Japan. Two ages for the top and bottom of the stalagmite were determined by ²³⁸U–²³⁴U methods as 744 ± 70 and 677 ± 74 ka, respectively (where errors are based only on analytical uncertainties, 1σ). Even when accounting for a 10% uncertainty in (²³⁴U/²³⁸U)₀, GYM-1 could be older than 460 ka, indicating that GYM-1 is concurrently the oldest among dated stalagmites in Japan. In this study, we could only obtain two ages to estimate the timing of GYM-1 formation. Further U-series analyses on multiple portions from the stalagmite would help evaluate the U-loss during the preservation and the initial ²³⁴U/²³⁸U variations during the growth period. The temperature estimated from δ¹⁸O_cc and δD_fi ranged from 9.0 to 11.9 ºC or from 6.0 to 9.1 ºC, similar to the modern climate. The high-resolution isotopic analysis of GYM-1 showed synchronous behavior of the δ¹⁸O_cc and δ¹³C_cc values with the lamination, suggesting that GYM-1 formed in a ventilated system. If the isotopic equilibrium can be established, GYM-1 is a potential stalagmite recording the seasonal temperature in the interglacial stages of the Middle Pleistocene.
