The 2015 M w 6.0 Mt. Kinabalu earthquake: an infrequent fault rupture within the Crocker fault system of East Malaysia

Geoscience LettersOfficial Journal of the Asia Oceania Geosciences Society (AOGS)20174:6

DOI: 10.1186/s40562-017-0072-9

Received: 13 October 2016

Accepted: 21 February 2017

Published: 9 March 2017

Abstract

The M w 6.0 Mt. Kinabalu earthquake of 2015 was a complete (and deadly) surprise, because it occurred well away from the nearest plate boundary in a region of very low historical seismicity. Our seismological, space geodetic, geomorphological, and field investigations show that the earthquake resulted from rupture of a northwest-dipping normal fault that did not reach the surface. Its unilateral rupture was almost directly beneath 4000-m-high Mt. Kinabalu and triggered widespread slope failures on steep mountainous slopes, which included rockfalls that killed 18 hikers. Our seismological and morphotectonic analyses suggest that the rupture occurred on a normal fault that splays upwards off of the previously identified normal Marakau fault. Our mapping of tectonic landforms reveals that these faults are part of a 200-km-long system of normal faults that traverse the eastern side of the Crocker Range, parallel to Sabah’s northwestern coastline. Although the tectonic reason for this active normal fault system remains unclear, the lengths of the longest fault segments suggest that they are capable of generating magnitude 7 earthquakes. Such large earthquakes must occur very rarely, though, given the hitherto undetectable geodetic rates of active tectonic deformation across the region.

Keywords

2015 Sabah earthquake Mt. Kinabalu Normal fault rupture Teleseismic finite fault inversion Landslides

Background

East Malaysia has a very low earthquake hazard, as it is far away from major plate boundary faults (Simons et al. 2007) (Fig. 1a). Nonetheless, infrequent earthquakes generated by intraplate active faults do occur and have caused significant damage (e.g., Lim and Godwin 1992), in part because the rarity of historical damaging earthquakes does not encourage implementation of seismic designs, preparation for earthquake-caused emergencies, and the systematic study of active faults.
Fig. 1

a (inset) Regional tectonic map of Southeast Asia. Red lines are primary plate boundary faults. Black dashed line is the active fold-and-thrust belt offshore Sabah. Color dot shows the M > 5 earthquakes from 1900 to 2015 from NEIC/USGS catalog. Red Arrow shows the general Sabah-Sunda motion extracted from the Global Strain Rate Model, with rate (mm/year) labeled in front of the arrow (Simons et al. 2007). b Topography of Sabah and details of instrumentally recorded earthquakes and geomorphologically evident active faults in the region. Colored squares indicate seismic intensities from the mainshock, based on the USGS “Did You Feel It” (DYFI) dataset and our own field interviews. Red lines denote features interpreted as normal faults mapped from 30-m SRTM data. Transparent colored lines show the approximate boundaries of major geological units, after (Hutchison 2005). G—granitic pluton of Mt. Kinabalu; U—ophiolitic basement

Sabah is the northeastern province of East Malaysia and lies within the Sunda block, between the oceanic basins of the South China, Sulu, and Celebes Seas (Fig. 1a). The high Crocker and Trusmadi Ranges rise from Sabah’s northwestern coast. Within that mountainous backbone, by far the highest peak is Mt. Kinabalu, which consists of a granitic pluton that was rapidly exhumed since its crystallization about 5–6 Ma (Cottam et al. 2013) (Fig. 1b). These two mountain ranges are nearly parallel to an active deep-water fold-and-thrust belt that lies offshore to the northwest and has likely resulted from either gravity-driven mass movements or slow tectonic shortening (Hesse et al. 2009; King et al. 2010; Sapin et al. 2013; Simons et al. 2007). Although Sabah’s active tectonic setting remains unclear, recent GPS analyses suggest that the region is moving slowly westward relative to the stable Sunda block at a rate of just a few mm/year (e.g., Simons et al. 2007; Mustafar et al. 2014). This slow convergence between Sabah and the part of the Sunda block beneath the South China Sea, together with recent geomorphic analyses implies that Sabah is dominated by contractional tectonics (e.g., Mathew et al. 2016).

The M w 6.0 Mt. Kinabalu earthquake occurred at 23:15 UTC, June 4, 2015, within this ambiguous tectonic environment. It was the largest earthquake to strike Sabah province in the past century (e.g., Engdahl and Villasenor 2002) and came as a surprise to local communities. Focal mechanisms calculated by the Global Centroid-Moment-Tensor (GCMT) project and the U.S. Geological Survey (USGS/NEID) suggest the focal depth of the mainshock was between 6 and 18 km on a normal fault striking nearly N-S or NE-SW (GCMT; Ekström et al. 2012). Prior to this event, the largest recorded earthquakes were m b 5.0 doublet in 1991 (Fig. 1b) that caused minor damage in the Ranau area, southeast of Mt. Kinabalu (Lim and Godwin 1992).

The Mt. Kinabalu mainshock produced intense ground shaking (I MMI ~ VII) in the vicinity of Ranau town, especially in the area between the town and the summit of Mt. Kinabalu (Fig. 1b, Additional file 1: Table S1). It also triggered extensive landslides along the steep slopes of Mt. Kinabalu, including rockfalls that killed 18 people and injured at least 21 more along climbing trails on the steep mountain face (Chan 2015). The mainshock was felt at least 300 km away, and the seismic intensity in the provincial capital, Kota Kinabalu, was strong enough (I MMI = IV) to awaken many residents in the early morning.

This M w 6.0 event provides a rare opportunity to improve our understanding of the seismic hazards and tectonic context of East Malaysia. Here, we combine seismology, aftershock relocations, space-based geodesy, and tectonic geomorphology to understand earthquake, to place it in an active tectonic context, and to map the extensive landslides on Mt. Kinabalu.

Point-source focal mechanism and finite fault inversion

Immediately after the M w 6.0 mainshock, we performed a teleseismic waveform inversion to determine a moment tensor solution by the Cut-And-Paste (CAP) method (Zhu and Helmberger 1996). This yielded a normal fault mechanism similar to solutions from global seismic networks (e.g., USGS and GCMT) and a centroid depth of 13–14 km (Fig. 2a; Additional file 1: Figure S1). The 209° strike of one of the fault-plane solutions is similar to the trend of normal fault scarps that appear clearly in the nearby topography (Fig. 2b).
Fig. 2

Seismological evaluation of the 2015 Kinabalu earthquake. a Point-source moment tensor solution from CAP analysis yields a best-fit centroid depth of about 13–14 km. b Map view of the finite rupture model of Mt. Kinabalu earthquake and relocated epicenters of the mainshock and select aftershocks. Upper bound of the modeled rupture plane is indicated by a heavy line, about 4 km below the surface. Red lines are active normal faults mapped from SRTM topography. c Slip in the finite rupture model, including rake angles (white arrows) and timing (black contours, in 2-second intervals). d Moment-rate function of the finite fault model shows that rupture lasted about 5 s. e Teleseismic P-wave fits for select stations. Red is synthetic and black is data; station names appear at the beginning of each waveform pair, as well as epicenter azimuth (above, in degrees) and distance (below, in degrees). Peak displacements (in micrometer) appear above the end of the waveform

We also conducted a finite fault inversion using broadband teleseismic body waves with a simulated annealing inversion algorithm (Ji et al. 2002). We tested fault planes corresponding to both nodal planes of our point-source focal mechanism. Detailed inversion parameters and methods appear in the Additional file 1.

Of the two orthogonal finite fault models, the fault that strikes 209° and dips 63° fits the data much better than the more shallowly dipping fault (best waveform fits are shown in Additional file 1: Figure S2). Most of the rupture occurred at depths >5 km, and peak slip is <50 cm (Fig. 2b, c). Thus, our model predicts <3 cm of surface deformation (Additional file 1: Figure S3).

Most of the seismic energy was released in the first 5 s of the rupture process (Fig. 2d). The rupture propagated unilaterally NNE along strike and had only a small component of updip directivity. The unilateral propagation is evident in the seismic waveform records, in that the waveforms from stations located to the south show longer durations than those to the north (Fig. 2e, duration highlighted by rectangles). The northward propagation of the rupture could have increased the shaking on Mt. Kinabalu and thus have increased the likelihood of landslides and rockfalls northeast of the fault rupture.

Relocation of aftershocks

More than one hundred aftershocks were recorded by the Malaysian seismic network. However, only seven are large enough to be included in the current global catalog (e.g., USGS/NEIC). The locations of these M ≥ 4 aftershocks differ appreciably between the USGS/NEIC and the Malaysian catalogs (Table 1; Additional file 1: Figure S4a). Since only two local stations (KKM and RNSM) within 50 km of the mainshock recorded these aftershocks, we use three-component waveform records at these two stations to relocate the aftershocks via single seismic station relocation.
Table 1

Mainshock and aftershock information

Origin date

Malaysia catalog

USGS cataloga

Relocationb

(YYYYMMDD_HHMM)

Lat.

Lon.

Dep.

Mag.

Lat.

Lon.

Lat.

Lon.

20150604_2315

6.0474

116.5900

9.0

6.0

5.9870

116.5410

6.0283

116.5798

20150605_0405

6.1256

116.4896

23.1

4.0

6.0051

116.5370

20150605_1312

6.0273

116.5569

10.0

4.2

6.0679

116.5624

20150605_1513

6.0782

116.5162

19.1

4.3

6.1400

116.7230

6.0110

116.5284

20150606_0545

6.1068

116.5644

10.0

4.8

6.1420

116.6690

6.0769

116.5931

20150612_1829

6.1013

116.6381

10.0

5.1

6.2050

116.6810

6.0505

116.5876

20150617_2158

6.0483

116.6161

10.0

4.0

6.0151

5.9918c

116.5850

116.5774c

20150623_0932

6.0664

116.6135

10.0

4.3

6.1280

116.5540

6.0154

5.9958c

116.5714

116.5503c

a“–” stands for no available information from USGS website

bLatitude and Longitude are determined from KKM station by applied bandpass filter of 50 s-1 Hz

cLatitude and Longitude are determined from RNSM station by applied bandpass filter of 50 s-1 Hz

To constrain aftershock locations using a single station, we estimate the backazimuth from the P-wave particle motion and the epicentral distance from the differential travel time of S- and P-wave, assuming a modified CRUST 2.0 layered velocity structure (Bassin 2000). The backazimuth of the event is determined by rotating the N-S and E-W component records to the radial and transverse components under the guiding principle that the best angle will minimize the P-wave energy on the transverse component (Jurkevics 1988; Niu and Li 2011). The epicentral distance is determined by the differential travel time of S- and P-wave with manually picked direct P- and S-wave arrival time (Additional file 1: Figure S5). The distance is then determined by matching the differential travel time with a theoretical travel time table derived from the 1D velocity model, assuming these events are located at a depth around 13 km, which is the depth of the mainshock hypocenter (Fig. 2a).

We are able to relocate the mainshock and seven aftershocks with backazimuth and distance from the single seismic station data. Two aftershocks epicenters determined from station RSNM are highly consistent with their epicenters determined from station KKM. This suggests that the single station method works well in the Mt. Kinabalu area (Fig. 2b). These eight relocated events define in a zone ~15 km × 5 km, much narrower than the distribution determined without using the two local stations (Additional file 1: Figure S4). This zone is consistent with the strike of our best-fitting finite fault model and is parallel to the generalized trend of normal fault scarps mapped at the surface.

ALOS-2 observation

We use L-Band ScanSAR and stripmap data acquired by ALOS-2/PALSAR-2 to estimate surface deformation associated with the mainshock. Data from descending track 28 and ascending track 142 (Table 2) were processed using the GMTSAR software (Sandwell et al. 2011) with the application of a 100-m Gaussian filter. Overall, both ascending and descending InSAR results show surprisingly good coherence across Sabah’s densely vegetated surface (Additional file 1: Figure S6).
Table 2

ALOS-2 data used in this study

Path

Frame

Obs. Mode

Dates

Perpendicular baseline (m)

Notes

28

3500

WD1 (descending)

2015/04/03–2015/05/15

61.8

Preseismic

28

3500

WD1 (descending)

2015/05/15–2015/07/24

168.4

Coseismic

142

103

SM3 (ascending)

2015/01/19–2015/06/22

145.3

Coseismic

Neither interferogram shows significant line of sight (LOS) displacement of Mt. Kinabalu, which implies that ground deformation was no more than the noise level of the interferogram, ~5 cm (e.g., Lin et al. 2010). This is consistent with the ~3 cm amplitude of surface deformation predicted from our finite fault model. Our InSAR results thus support our interpretation from the teleseismic inversion—that the earthquake resulted from a blind normal fault rupture that did not reach the surface.

While the LOS displacement fields show no appreciable tectonic ground deformation in the vicinity of Mt. Kinabalu, the interferograms contain some unusually large low-coherence patches on the slopes of Mt. Kinabalu (Fig. 3a). These may be the result of either radar overlay due to the steep topography of Mt. Kinabalu or extensive slope failures triggered by the mainshock. The latter interpretation is more viable, because these or similar low-coherence patches that do not exist in the interferogram formed from two pre-earthquake descending ALOS-2 ScanSAR images (Fig. 3b).

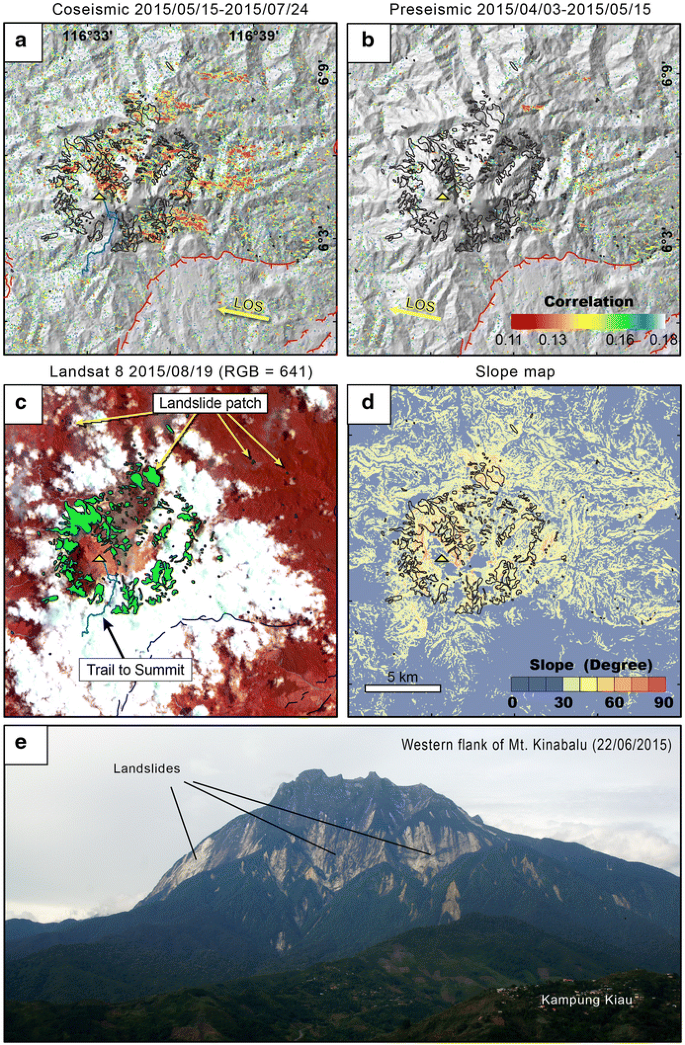

Fig. 3

ALOS-2 coherence and slope maps show that loss of coherence is related to coseismic slope failures of slopes steeper than 30° on Mt. Kinabalu. a Post-seismic image correlation map of the descending tracks. Black outlines are post-seismic slope failures mapped from Landsat 8 images (Green polygons in panel c). Red lines are the active faults from this study. Blue line shows the trail to the summit of Mt. Kinabalu. b Preseismic correlation map of the same track, showing good correlation throughout the Mt. Kinabalu. c Landsat 8 image of Mt. Kinabalu acquired in Aug 2016 overlaid by the mapped landslides (green polygons). The area covered by could is mapped by other Landsat 8 and optical satellite images. d Slope map generated from SRTM data overlain with optically mapped slope failures. This map shows that slope failures caused by the earthquake correlate well with slopes steeper than 30°. e The western flank of Mt. Kinabalu after the Sabah earthquake. White patches on the slope are the new landslides areas triggered by the M w 6.0 mainshock

Landslide distribution

Inspections of post-earthquake optical Landsat 8 satellite images and photos taken in the field after the mainshock confirm that many of these low-coherence patches are either associated with large landslides and rockfalls or smaller but tightly clustered rockfalls (Fig. 3c). Both the radar interferograms and the optical imagery and photographs show that most of the slope failures occurred where the flanks of Mt. Kinabalu are steeper than 30° (Fig. 3d). Our Landsat 8 observations also indicate that some of the earthquake-induced landslides occurred more than 30 km from the epicenter.

One of the largest of slope failures is a 6 km2 patch within the river catchment on the northwestern side of Mt. Kinabalu. Another large failure is a 5 km2 patch on the southern flank of Mt. Kinabalu. The match between the radar and optical interpretations is better on the northern slope than on the southern slope. This likely results from the line of sight azimuth of the ALOS-2 data, as Mt. Kinabalu’s southern slope is nearly parallel to ALOS-2’s line of sight, so it is more likely that not all the incoherence reflects actual changes in the slope.

The ALOS-2’s descending interferogram also shows some low-coherence patches east of the Mt. Kinabalu (Fig. 3a). However, clouds obscure the optical satellite images in that region, so they cannot be used to confirm that these patches are the result of slope failures.

Overall, the distribution of the landslides mapped from the optical imagery and InSAR roughly coincides with seismic intensities of V and higher, consistent with the global landslide–intensity relationship compiled by Keefer (1984) and Rodrı́guez et al. (1999). The area affected by triggered landslides is mostly within a 15 × 15 km (225 km2) area near the epicenter. However, if we include other remote slope failures mapped from the post-quake Landsat 8 imagery, the total area affected by landslide is likely exceeds 500 km2 (26 × 21 km). This upper-bound estimate of the landslide-affected area is slightly smaller than the 650 km2 area affected by slope failures after the M w 6.2 Coalinga, California, earthquake of 1983 (Rodrı́guez et al. 1999), but much smaller than the area of slope failures associated with North American intraplate earthquakes: The M w 5.8 Saguenay in 1988 and the M w 5.8 Mineral earthquake in 2011 produced slope failures regions within areas of ~30,000 to 45,000 km2 (Jibson and Harp 2012; Rodrı́guez et al. 1999). These differences likely reflect higher attenuation of ground motion in Sabah, as the two eastern North America earthquakes were felt over an extraordinary large area due to the low seismic attenuation of eastern North American lithosphere.

The directivity of the mainshock rupture may have also affected the landslide distribution. Although nearly all the mapped large landslides occurred on slopes of Mt. Kinabalu that average >30°, smaller landslides occurred primarily north of the mainshock epicenter, and few occurred on the steep slopes south of Mt. Kinabalu. This is consistent with the rupture propagation direction determined by our finite fault inversion (Fig. 3c). We hypothesize that the unilateral rupture enhanced ground shaking north of Mt. Kinabalu and whereby triggered relatively extensive small landslides north of the mainshock epicenter and few to the south.

Active normal faults in northwestern Sabah

The occurrence of the Sabah earthquake motivated us to inspect the mountainous terrain for geomorphological evidence of youthful tectonic deformation. Not only did we inspect the immediate region of the earthquake for evidence of coseismic fault rupture, but we also examined the surrounding region for evidence of active faults, to see if the location and mechanism of the earthquake could be related to a larger system of tectonic elements. Shaded relief and 10-m contour maps made from the 30-m SRTM global dataset enabled and greatly facilitated these local and regional inspections.

The topography of Sabah bears clear evidence for a 200-km-long system of active normal faults that extend northeast to southwest, through the epicentral region (Fig. 1b). The scarps of these normal faults bound five discrete valleys and exhibit hundreds of meters of topographic relief between the valley floors and mountain crests. The topographic evidence for youthful normal faulting along these valley margins is typical—triangular facets, scarps across alluvial terraces and other topographic truncations best explained by normal faulting (Additional file 1: Figures S7, S8). These geomorphic interpretations of normal faulting are consistent with the field observations of Tjia (2007) who describes normal faulting of Quaternary sediments within this fault system.

We name this the Crocker fault system, because the Crocker Range extends along nearly half its length. It divides naturally into a set of five distinct graben and master faults, one associated with each of the Tenom, Keningau, Tambunan, Ranau, and Marak Parak valleys (Fig. 1b). Lengths of individual graben and associated fault zones range from about 20 to about 60 km. Four of these appear to be half-graben, in that they exhibit only one bounding fault or one of the bounding faults is dominant over the other. Of these four, two have dominant faults that dip southeast and the other two have dominant faults dipping northwest. The three grabens southwest of Mt. Kinabalu comprise about 120 km of the entire system, and the width of the system ranges from 10 to 20 km. The half-graben northeast of Mt. Kinabalu exhibits a single, narrow fault that dips southeast. -Mt. Kinabalu clearly interferes with the regularity of the Crocker fault system, and the faulting immediately to the NE and SW and on the southern flank of the mountain is complex, with a variety of fault orientations and faults with opposing dips.

In particular, faulting near the mainshock epicenter is complex (Figs. 2a, 4). Two SE-dipping normal faults are exposed along the eastern and the southern flank of Mt. Kinabalu, but the ~10-km-long, west-dipping Marakau Fault bounds the eastern margin of the Ranau basin (Fig. 2a). Mapping of triangular facets and field observations suggest that the Marakau Fault truncates the Trusmadi formation (Figs. 1, 4). Streams within the Ranau basin systemically flow eastward until they reach the eastern margin of the basin, and fluvial terraces are well developed along the western margin of the basin (Fig. 4). These observations suggest that eastward tilt of its hangingwall block has accompanied late-Quaternary motion of the west-dipping Marakau fault.
Fig. 4

Geomorphic expressions of normal faults near the southeast flank of Mt. Kinabalu and the Ranau Basin. Red dashed line shows active fault trace inferred from geomorphology, with up-thrown side marked by U and downthrown side marked by D. Blue-colored arrow indicates the flow direction of channel in the Ranau Basin. The only normal fault that dipping northwestward in this map is the Marakau Fault at the eastern edge of the Ranau Basin. Tri: Triangular facets; Wine: Wineglass canyon; Scr: Scarp; W: Wind gap; BR: Broken ridge. Black contour interval is 50 m, gray contour interval is 10 m

The Mt. Kinabalu earthquake likely resulted from the rupture of the northwest-dipping Marakau fault or a closely associated fault beneath Mt. Kinabalu. Of the faults we see in the topography, the Marakau fault is the only plausible source of the earthquake. The fault trace lies about 16 km southeast of the epicenter and has a strike and dip that is similar to that of the earthquake’s focal mechanism. However, if our hypocenter of the earthquake is correct, the Marakau fault cannot actually be the source of the earthquake, because the Marakau fault would need to have an average surface-to-hypocentral dip of only 40°, far shallower than the 60° dip we determined for the rupture. Moving the earthquake epicenter about 8 km toward the Marakau fault would allow the requisite 60° dip, but 8 km is well beyond the ~3 km uncertainty of our epicentral estimation. We therefore contend that the earthquake resulted from failure of a minor fault that splays upward from the Marakau Fault and does not break the surface.

Tectonic implications

The tectonic implications of the Mt. Kinabalu earthquake and the Crocker fault system remain uncertain. While the normal fault mechanism and the geometry of the regional fault system indicate crustal extension perpendicular to the coast of Sabah, offshore structures clearly show ongoing shortening (e.g., Ingram et al. 2004; Hesse et al. 2009). Moreover, the earthquake and the Crocker fault system imply subsidence of Mt. Kinabalu, whereas geological evidence indicates that the Mt. Kinabalu Granite has risen rapidly since its crystallization 5–6 Ma (Cottam et al. 2013). These contradictions suggest that the extensional forces that are creating the normal fault system are directly related neither to the forces creating the offshore fold-and-thrust belt nor to those that have created the edifice of Mt. Kinabalu.

Previous studies have suggested that northwestern Sabah is collapsing northwestward into the South China Sea by gravitational collapse, as a gigantic landslide (e.g., Sapin et al. 2013; Sandal 1996). Ostensibly, the Crocker fault system could be the extensional headscarp of this gigantic landslide (Fig. 5a). However, the 13- to 14-km hypocentral depth of the Mt. Kinabalu rupture is far too deep and its 60° dip far too steep to lend support to this hypothesis. Normal faulting associated with a great landslide would need to occur at far shallower depths, above the low-angle detachment fault that would connect the offshore fold-and-thrust belt with the normal faults of the headscarp. Such faults on the Niger Delta, for example, occur at depths ≤10 km (Corredor et al. 2005).
Fig. 5

Three schematic models of the cause of the Mt. Kinabalu earthquake: a the gravity sliding model, which requires a deep and gentle detachment underneath the Mt. Kinabalu connecting the normal faults to the deep-water fold-and-thrust belt offshore Sabah. b The tectonic shortening model, which the earthquake is caused by the localized extension near the anticlinorium axis above a major convergent fault interface. c The localized stress trigger model that the earthquake is triggered by the stress anomaly introduced by the 4-km-high topography of Mt. Kinabalu on the pre-existing fault

Alternatively, we could hypothesize that the normal faults of the Crocker fault system are the manifestation of extension at the crest of an anticlinorium that is forming above a deep, convex-upward thrust fault that farther updip is producing the offshore fold-and-thrust belt (Fig. 5b). If so, then northern Sabah might be experiencing basement-involved tectonic shortening, as suggested by Hesse et al. (2009).

Another hypothesis is that the earthquake was triggered by localized stresses associated with the topographic prominence of 4000-m high Mt. Kinabalu above the surrounding landscape (Fig. 5c). In such a case, the rupture would have reactivated a pre-existing normal fault beneath the mountain (e.g., Lin 2005). This hypothesis might suffice to explain the earthquake, but it would not explain the regional extent of the active Crocker fault system and other normal mechanism seismicity in Sabah outside the Mt. Kinabalu region.

The 13- to 14-km depth of the Mt. Kinabalu earthquake and the 200 km length of the Crocker fault system lead us to prefer the hypothesis that this narrow extensional fault system is part of a deeper tectonically driven convergent system that verges toward the offshore fold-and-thrust belt. Further tests of the hypothesis could include comparison of the modern rates of convergence and extension across the offshore and onshore zones of convergence and extension, and geophysical analysis of the crustal-scale structural geometry of northwestern Sabah.

The potential for larger earthquakes within the Crocker fault system

The presence of youthful, geomorphically expressed normal faults well beyond the source of the Mt. Kinabalu rupture implies that future seismic ruptures are plausible well beyond the region of the 2015 earthquake. It also implies that past and future ruptures could be larger than the 2015 rupture. Indeed, the 40- to 60-km lengths of the larger faults within the Crocker fault system suggest that M w 7+ earthquakes are plausible anywhere along the 200-km-long belt (cf. the length–magnitude relationships of Wells and Coppersmith 1994; Wesnousky 2008; Blaser et al. 2010).

The recurrence intervals of such large events are, however, likely to be at least several thousand years, as the geological slip rates of these faults are likely lower than 1 mm/year (e.g., Mustafar et al. 2014). To explore plausible earthquake recurrence times for the Crocker fault system as a whole, we conduct a simple earthquake frequency model using the relationship between average fault slip rate (R) and seismic-moment accumulation rate (\(\dot{M}_{0}\)):
$$\dot{M}_{0} = \mu \left( {L\frac{W}{\sin (d)}} \right)R$$
(1)
and
$$M_{w} = \frac{2}{3}\log_{10}M_{0} - 10.73;\;M_{0} \;{\text{in}}\;{\text{dyne}} \cdot {\text{cm}}$$
(2)
for which we assume a uniform 0.5 mm/year fault slip rate (R) across a fault with aggregate length (L) of 300 km, allowing for additional length from overlaps and splays within Crocker fault system, a seismogenic depth (W) of 15 km and a dip (d) of 70°. We also assume that the frequency of larger earthquakes along this normal fault system follows the truncated Gutenberg–Richter relationship:
$$\log_{10} N\left( {M_{w} } \right) = a - bM_{w} ;\;M_{w} \le M_{\text{Max}}$$
(3)
where northern Sabah has a b value of 0.9, and maximum magnitude about M w 7.3 (\(M_{\text{Max}}\)) from the empirical fault lengthmagnitude relationship (e.g., Wells and Coppersmith 1994). With an average crustal rigidity (\(\mu\)) of 3 × 1011 dyne/cm2, this model yields a frequency for magnitudes ≥5 of about 20 years, for magnitudes ≥6 of nearly 150 years, and for magnitudes ≥7 of about 1300 years. This roughly coincides with actual earthquake frequencies for the Sabah region, as seen in the global catalog of earthquakes since 1900—five magnitude ≥5 events from 1900 to 2015 and the lone magnitude 6 of 2015.

If we assume a much lower fault slip rate—only 0.1 mm/year—then a magnitude ≥7 earthquake would be expected far less frequently—about every 6300 years. An accurate measurement of geodetic strains across the region or paleoseismic investigations might enable determination of which of these two estimates is closer to reality. Such knowledge could be quite important, because destructive strong ground motions from a M7+ earthquake could extend well beyond nearby towns and villages, to even as far as Sabah’s capital city, Kota Kinabalu, which currently has a population of over 500,000 people.

If the Crocker fault system is the expression of a bending-moment fault above a tectonically driven thrust fault that verges into Sabah’s offshore faults, the potential for even larger earthquakes sourced from the underlying thrust fault would exist. This connection is so speculative, however, that we do not consider scenarios for such earthquakes.

Even if large earthquakes occur within the Crocker fault system only every few thousand years, prudence dictates that preparations for such events take place. Many of Earth’s most recent seismic disasters have resulted from the rupture of faults that have recurrence times measured in thousands of years. The average recurrence interval of the Longmenshan Fault that produced the M w 7.9 Wenchuan earthquake in 2008 may well be 3–4 kyear (e.g., Ran et al. 2013; Ren and Zhang 2013). The Greendale Fault, which produced the 2010 M w 7.1 Darfield earthquake, has a mean recurrence interval of 10–60 kyear (Hornblow et al. 2014). In both of these examples, the average fault slip rate of the source faults has been difficult to estimate using modern geodetic data because they are so low. Thus, as in the case of Sabah, these faults drew scant or no attention before their devastating earthquakes.

The implication of future seismic hazard analysis of Southeast Asia

The Sabah earthquake should also raise concerns about seismic potential of some Southeast Asian regions beyond East Malaysia, as very low slip rate faults are not limited to the Sabah region. Several other places in Southeast Asia with slowly slipping faults may also experience a similar level of the seismic hazard. Parts of peninsular Malaysia, and western and southwestern Thailand also exhibit evidence of active low slip rate faults or other evidence of recent tectonic movement (e.g., Fenton and Sutiwanich 2005; Pananont et al. 2011; Tjia 2010; Shuib 2011). Geodetic analyses within the past several decades suggest that ongoing tectonic strain accumulation in these regions is lower than can yet be resolved by space-based geodesy (i.e., less than a few mm/year). Nonetheless, recent seismic activity or the geological investigations in these regions suggests a potential for future damaging earthquakes. Although the average frequency of large, destructive earthquakes in these regions may—as in the case of Sabah—be low, rapid economic development and population growth have significantly increased their seismic risk. Vigorous efforts to quantify the seismic hazards and risks of Sabah and these other areas would be an important first step toward mitigating the potentially tragic effects of future earthquakes.

Conclusions

Our teleseismic waveform and finite fault inversion results suggest the M w 6.0 Mt. Kinabalu earthquake resulted from rupture of a blind, northwest-dipping normal fault that likely splay upward from the Marakau fault, which reaches the surface on the east side of the Ranau Valley. The maximum coseismic slip revealed by our finite fault model is <50 cm and at a depth of 13–14 km. This blind rupture area is consistent with aftershock relocations and agrees with our field and ALOS-2 InSAR observations of no appreciable surface deformation or surface rupture near Mt. Kinabalu. The landslides mapped from the optical satellite imagery and ALOS-2 InSAR together suggest the area affected by landslides is >225 km2, and may be as large as 500 km2. This area coincides roughly with the region of seismic intensities V and higher and with slopes exceeding 30°. The unilateral rupture of the mainshock likely enhanced the ground shaking in the area north of Mt. Kinabalu and triggered more landslides north of the mainshock epicenter than to the south.

Our geomorphological analysis indicates that the fault that caused the M w 6.0 earthquake is part of the 200-km-long Crocker fault system, which follows the backbone of the Crocker Range. Although the tectonic significance of this narrow fault system is unclear, its scale implies that future seismic ruptures well beyond the region of the 2015 earthquake are plausible, and that this fault system may be capable of producing a magnitude ≥7 earthquake. Like other active faults with low slip rate, the recurrence interval of such large earthquakes along the Crocker fault system is likely to be in the order of several thousand years. However, the destructive strong ground motions from a M7+ earthquake could extend well beyond nearby towns and villages, and could bring significant seismic hazard to Sabah’s coastal settlements, including its capital city, Kota Kinabalu.
